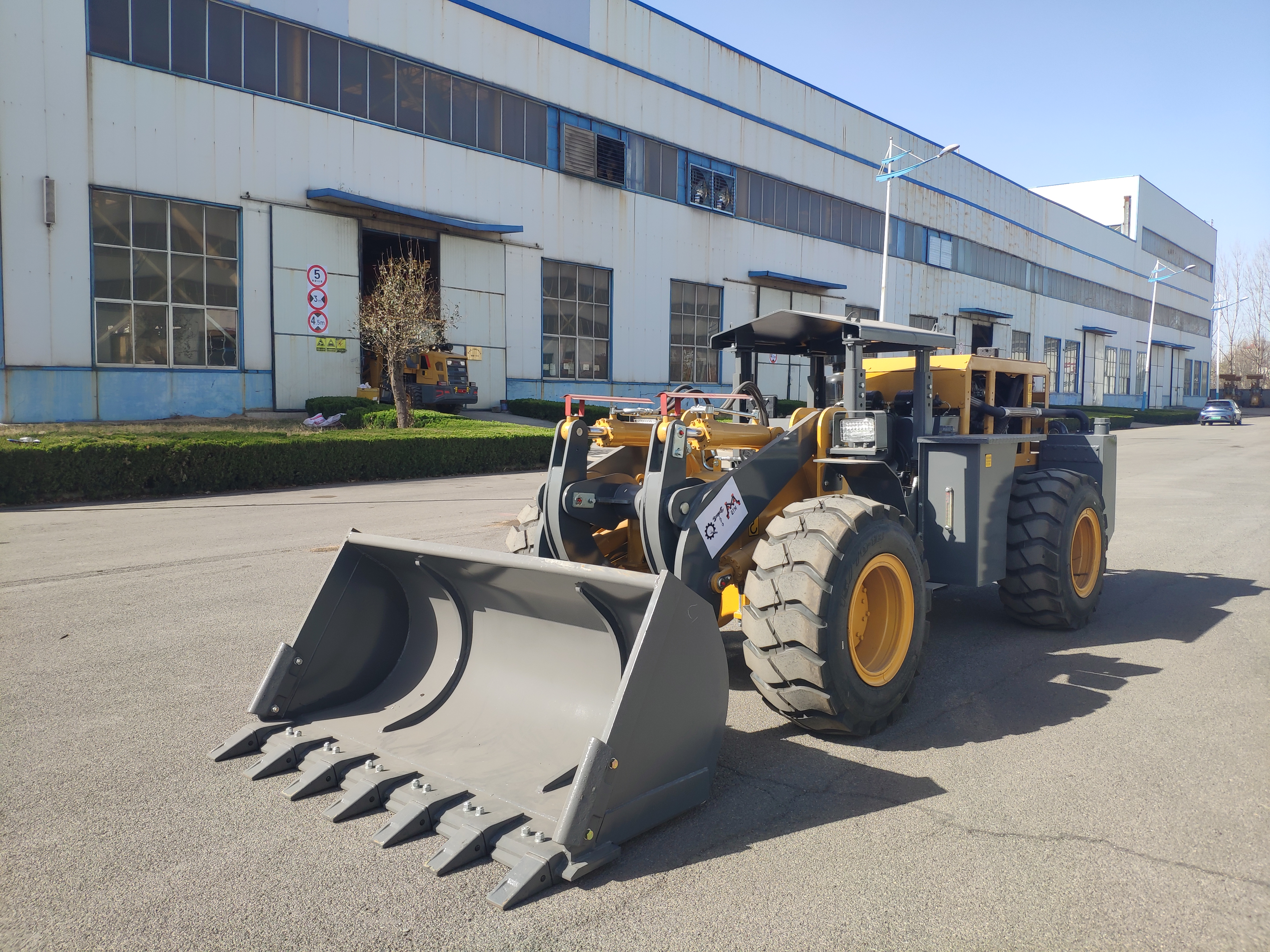

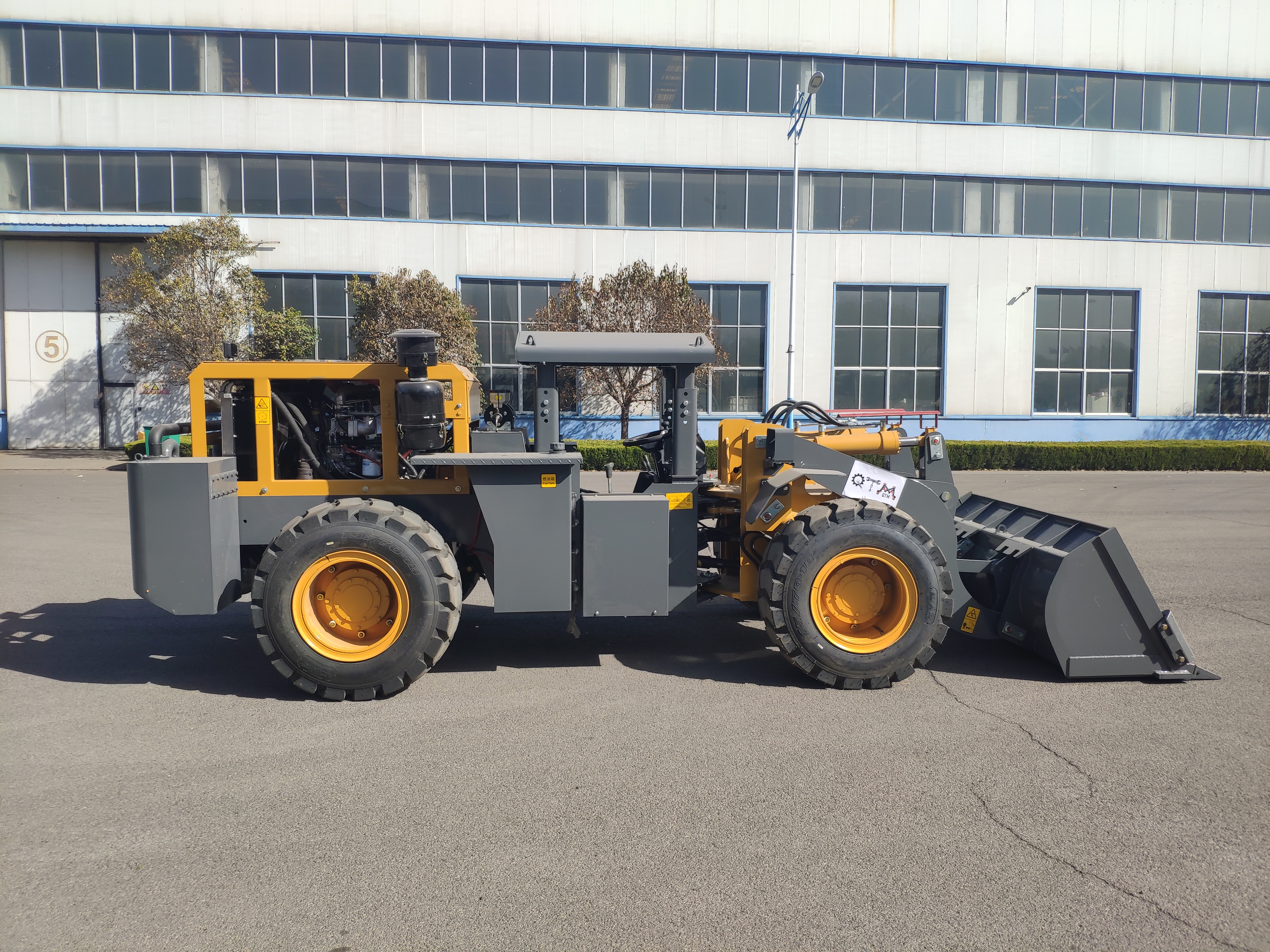

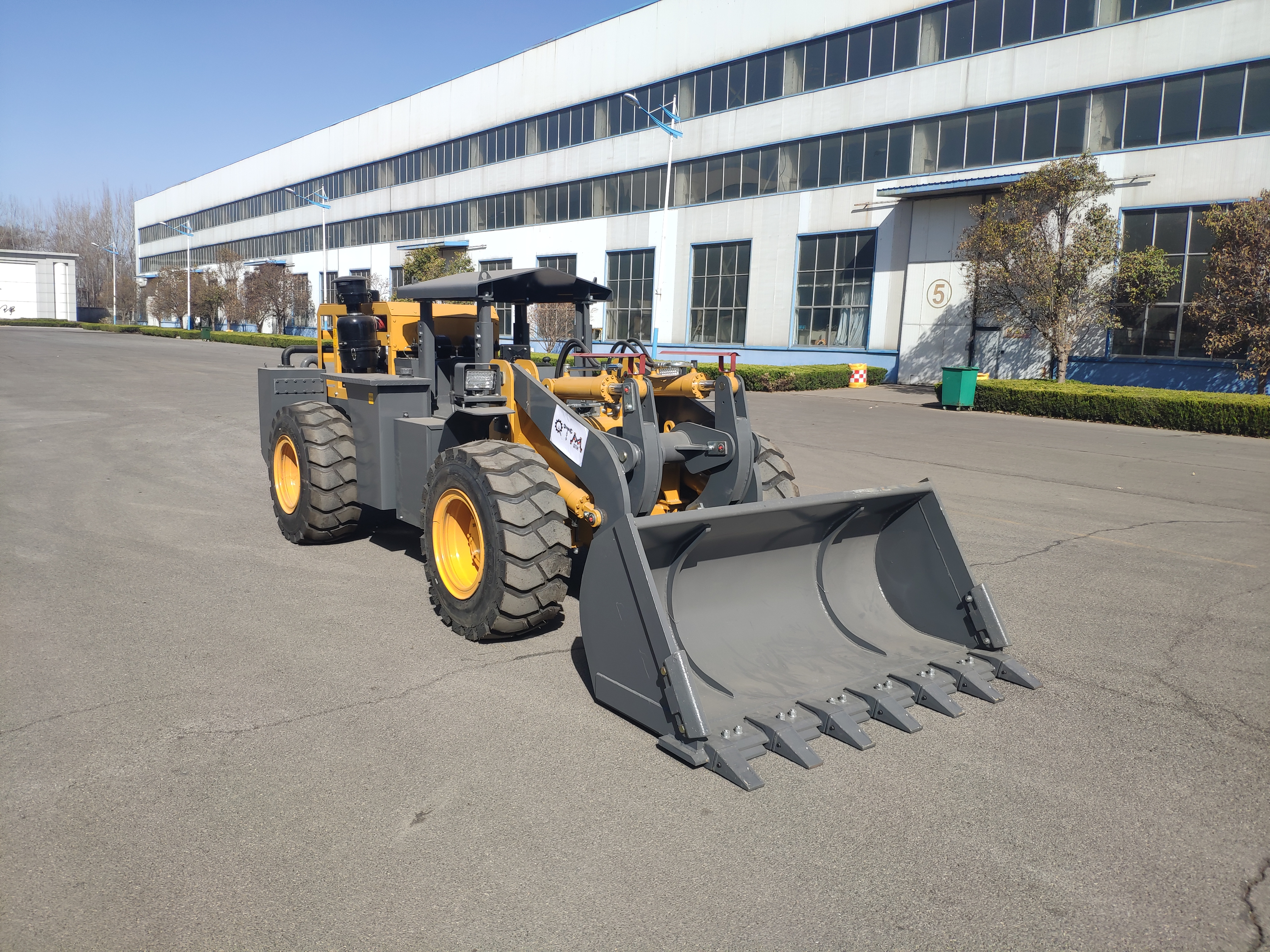

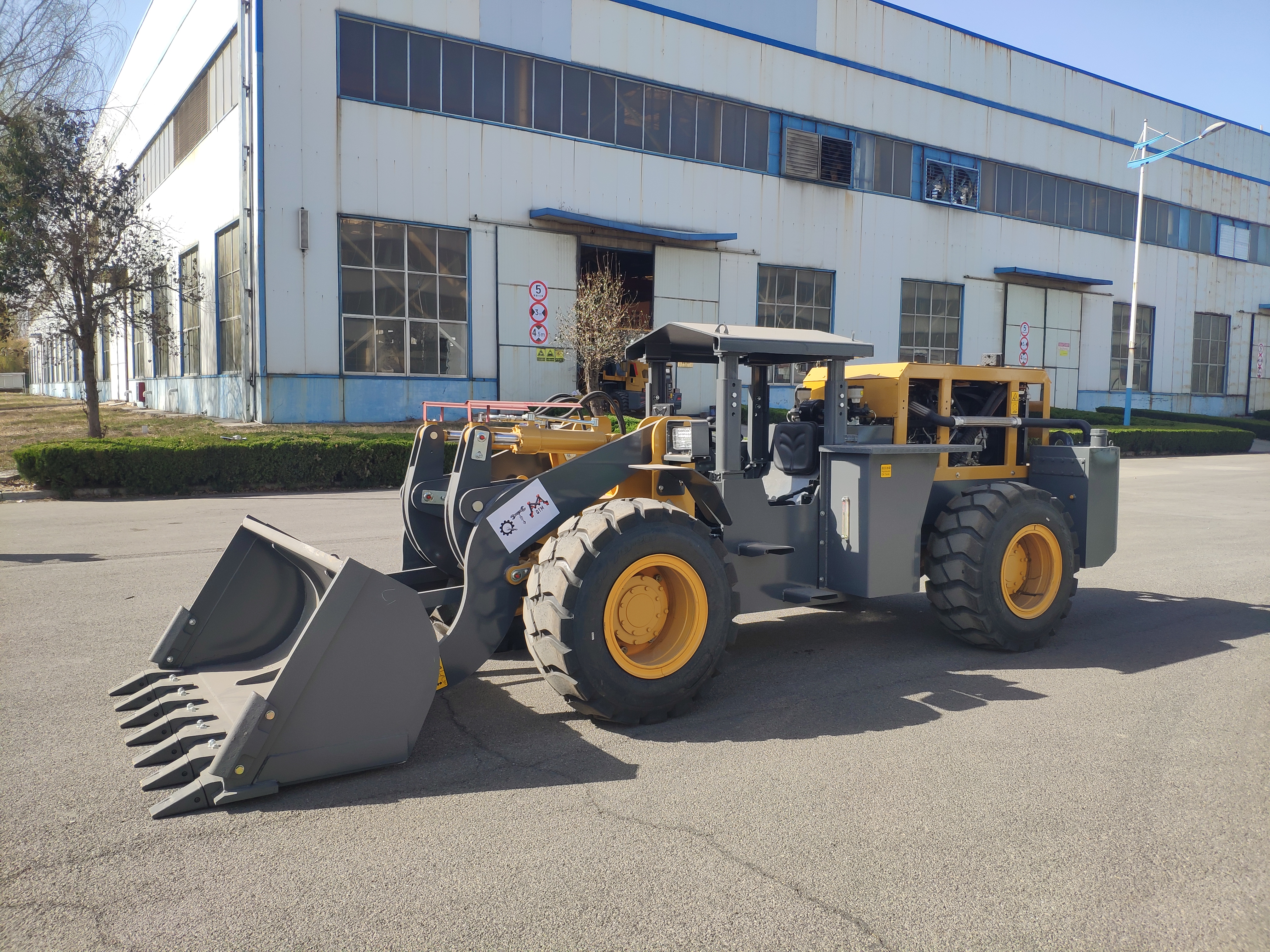

QTM20J Underground Load-haul-dump LHDs
Designed for mine construction conditions, the structural platform has been tested and has high reliability.
The front and rear frame adopts finite element analysis technology to eliminate local stress, high torsion coefficient and strong overload capacity.
The excellent quality power transmission system provides stable and reliable power output for the whole machine, and ADAPTS to high intensity, continuous and heavy load operation.
The height adjustable cab can meet the needs of mine operation.
The roof has good anti-falling object performance by thickening and adding rectangular beams
Phone : +86 18953651137
Email : info@qintaimach.com
Whatsapp : +86 15964591536

Product Description

Designed for mine construction conditions, the structural platform has been tested and has high reliability.

The front and rear frame adopts finite element analysis technology to eliminate local stress, high torsion coefficient and strong overload capacity.

The excellent quality power transmission system provides stable and reliable power output for the whole machine, and ADAPTS to high intensity, continuous and heavy load operation.

The height adjustable cab can meet the needs of mine operation.

The roof has good anti-falling object performance by thickening and adding rectangular beams


Operating Weight(kg)6500
Loading Capacity(kg)2000
Bucket Capacity(m³)1.15
Overall Dimension(length*width*depth)(mm)5910*2050*2400
Wheelbase(mm)2300
Wheel Track(mm)1530
Min.Discharge Distance(mm)1000
Max.Discharge Height(mm)2100
Min.Ground Clearance(mm)310
Bucket Width(mm)2400
Min.Turning Radius(mm)outside:5700/inside:3100
Transmission
Hydraulic Steering;Mechanical Transmission
Drive Mode
Four Wheel Drive
Max.Breaking Force(KN)40
Tipping Load(kg)3600
Ground Ability(°)14

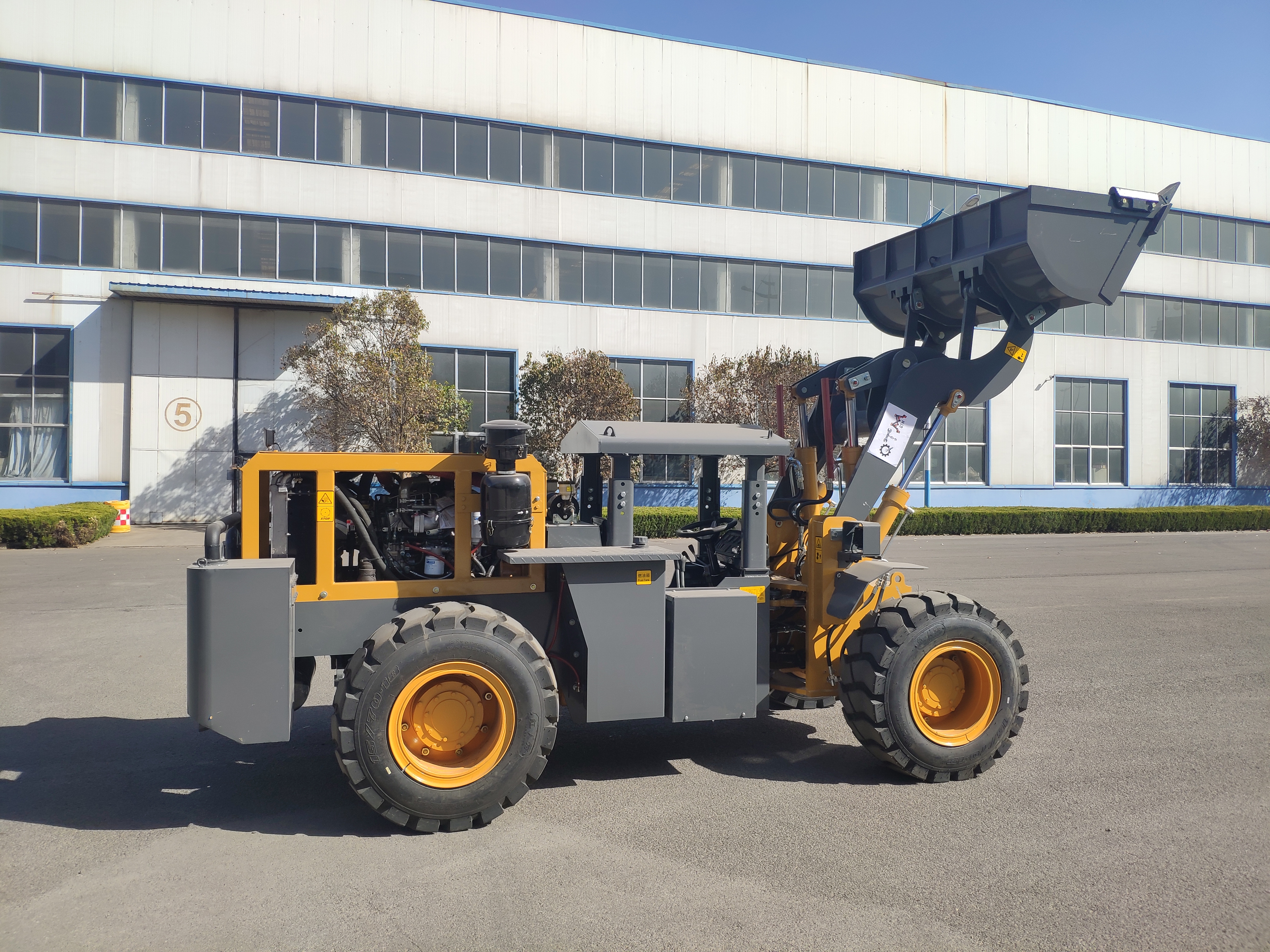

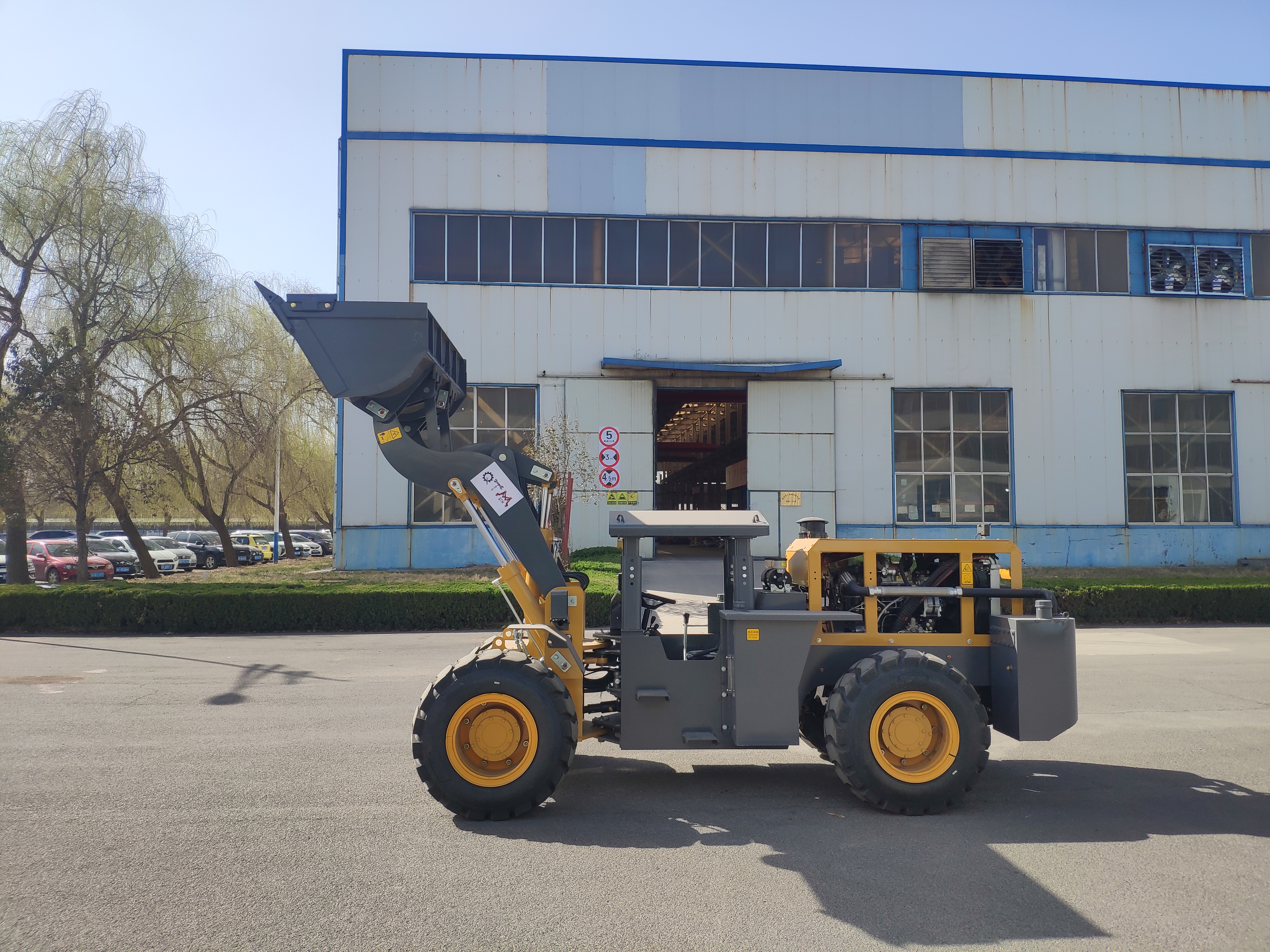

Product Show

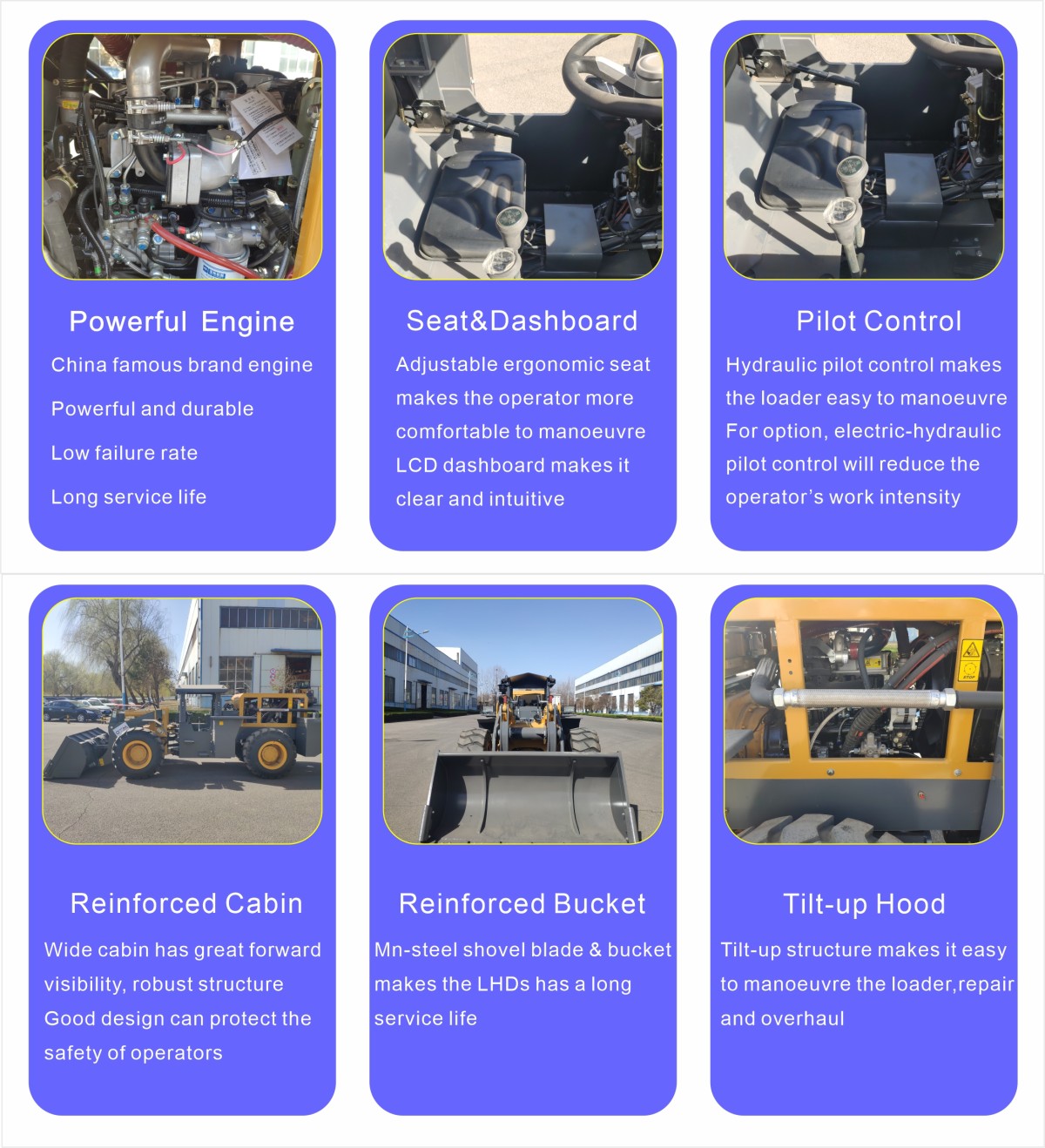

LHDs details.jpg

Factory Show

Customer Photo

FAQ

Free Asked Questions:
1.Q: Are you a original manufacturer?
A; yes,we are a professional manfacturesr of construction manchinery in China and we can supply loaders, motor grader, road roller, tractor, backhoe loader, excavator etc.
2.Q:What kind terms of payment canbe accepted?
A: Normally we accept T/T or L/C.
3.Q:Which incoterms 2020 terms can we work?
A:FOB CIF CFR ESW etc.
4.Q:What is the delivery time?
A:Within 15 days after receving the deposit.
