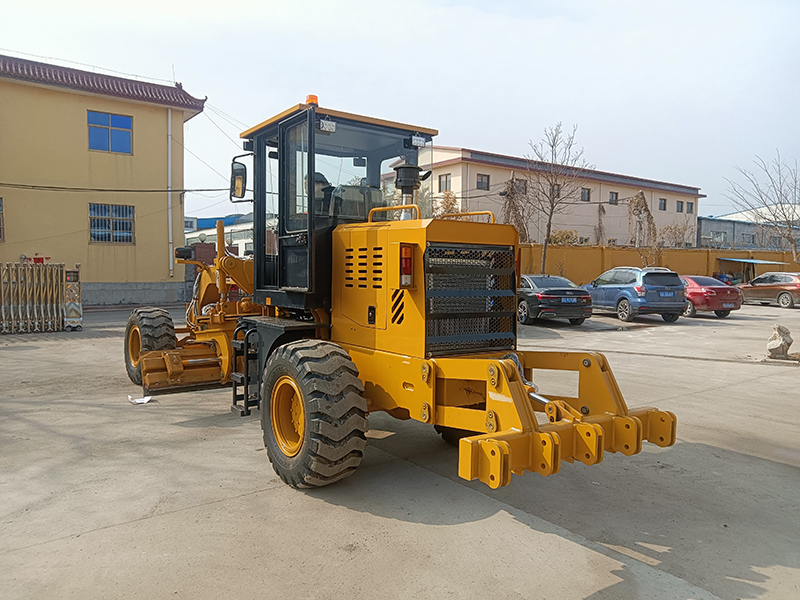

QTM9080 Motor Grader
The large blade Angle, the optimized curvature of the scraper and the wide throat clearance allow the material to roll more freely along the blade, thereby increasing efficiency.
The on-demand hydraulic fan automatically adjusts its speed according to cooling needs, maximizing power transfer to the ground and improving fuel efficiency.
The engine idle stop function is provided to shut down the engine after a set period of time, saving fuel and helping to reduce emissions.
Easy to operate
Proportional distribution, Priority selection, and Pressure compensation (PPPC) provide superior control, enhanced performance, and higher efficiency for load sensing hydraulic systems.
The optional automatic shift transmission improves ease of operation and maximizes productivity by automatically shifting the transmission to the best possible gear.
Phone : +86 18953651137
Email : info@qintaimach.com
Whatsapp : +86 15964591536

Product Description

The large blade Angle, the optimized curvature of the scraper and the wide throat clearance allow the material to roll more freely along the blade, thereby increasing efficiency.

The on-demand hydraulic fan automatically adjusts its speed according to cooling needs, maximizing power transfer to the ground and improving fuel efficiency.

The engine idle stop function is provided to shut down the engine after a set period of time, saving fuel and helping to reduce emissions.

Easy to operate

Proportional distribution, Priority selection, and Pressure compensation (PPPC) provide superior control, enhanced performance, and higher efficiency for load sensing hydraulic systems.

The optional automatic shift transmission improves ease of operation and maximizes productivity by automatically shifting the transmission to the best possible gear.


EngineEPA for optional
ModelCummins 4BTA3.9-C80
Rated power59kw 80HP
TypeStraight Line, Water Cooling, Direct Injection, Four Stroke
Power Rating59kw
Engine Displacement3.9L
Cylinder Diameter /  Stroke102mm/115mm
Minimum Fuel Consumption Rate≤205g/(Kw.h)
Main Parameters
Whole Machine Quality5980Kg
Maximum Swing Angle Of Front Axle±16 °
Front Wheel Maximum Steering Angle±45 °
Blade Size  (Long * High * Thick)3000*480*18mm
Cutter Head Diameter1090mm
Hinged Steering Angle Of Frame±23 °
Blade Rotation Angle360°
Blade Clearance400mm
Cutting Depth260mm
Blade AngleBackward 47  Degrees,  Forward 5  Degrees
Blade Slip RangeLeft 500mm,  Right 500mm
Minimum Ground Clearance Of Front Axle380mm
Minimum Ground Clearance Of Rear Axle350mm
Wheel Pitch1590mm
Wheelbase  ( Front And Rear)4260mm
Driving System
The Highest Speed  (Forward,  Backward)40km/h
Transmission TypeCountershaft powershift
Torque Converter TypeSingle Stage, Single Phase, Three Element
GearF4/R4
Tyre16/70-20  heavy duty
Hydraulic System
TypeOpen Type
System Pressure16Mpa
Oil Tank Capacity
Hydraulic Fluid130L
Diesel Oil100L
Dimension Length x Width  x Height6050×2050×3100 mm

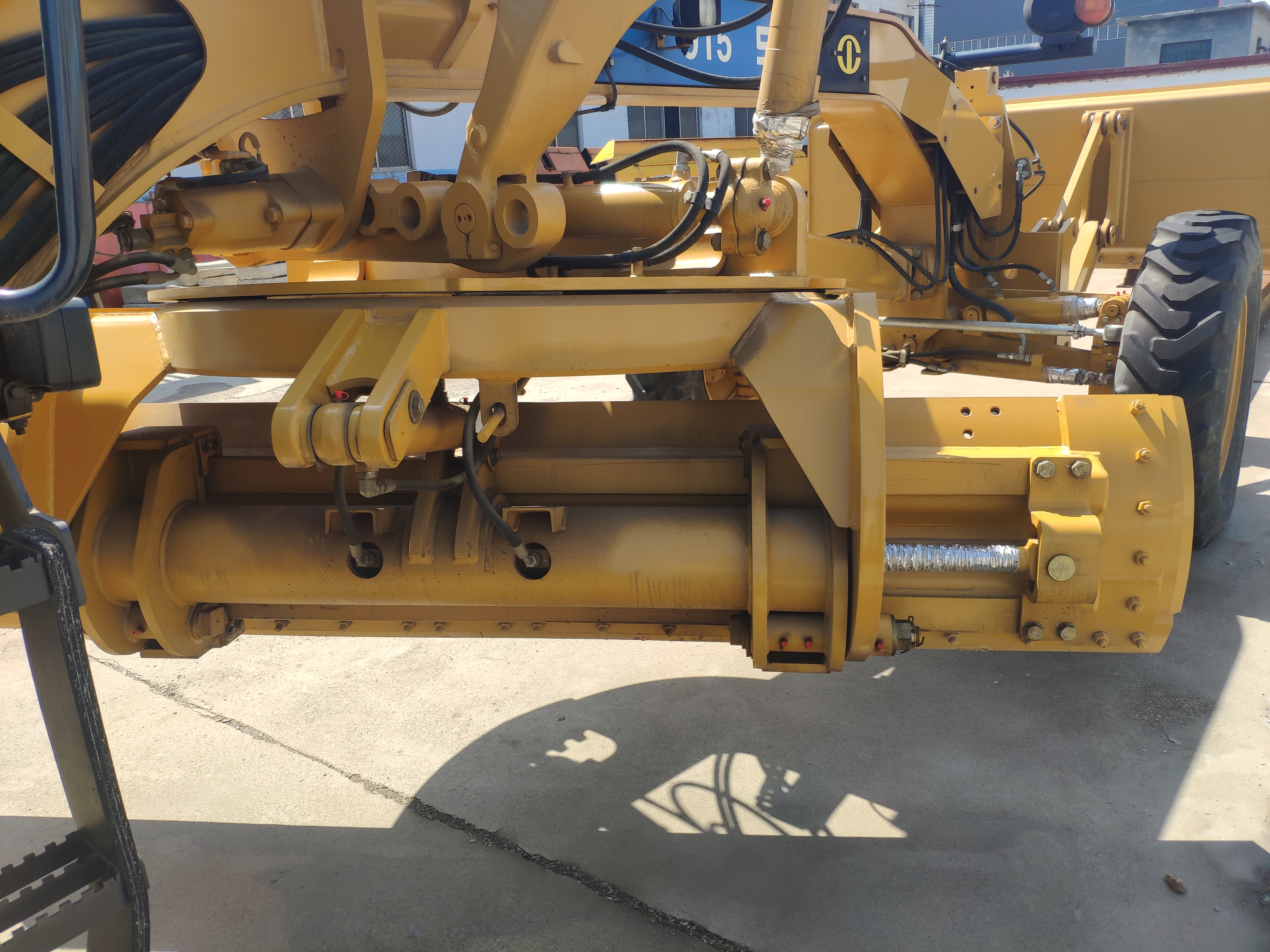

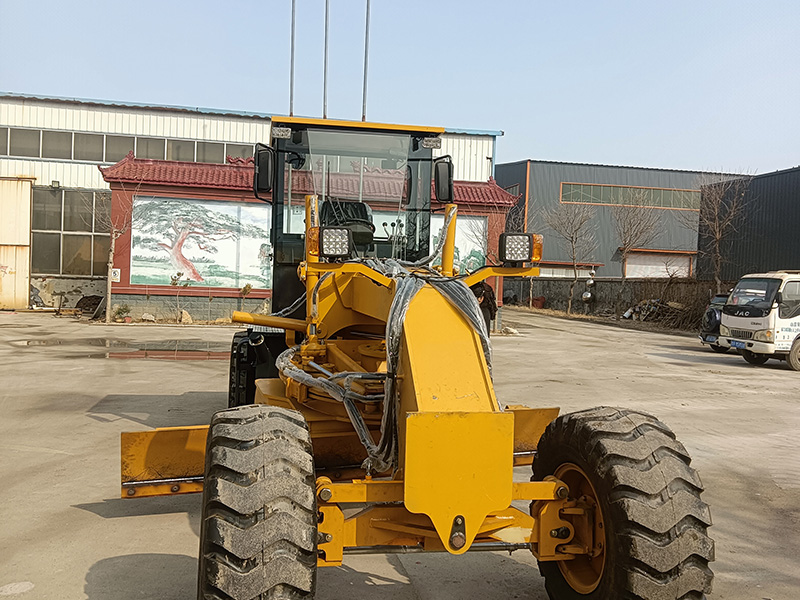

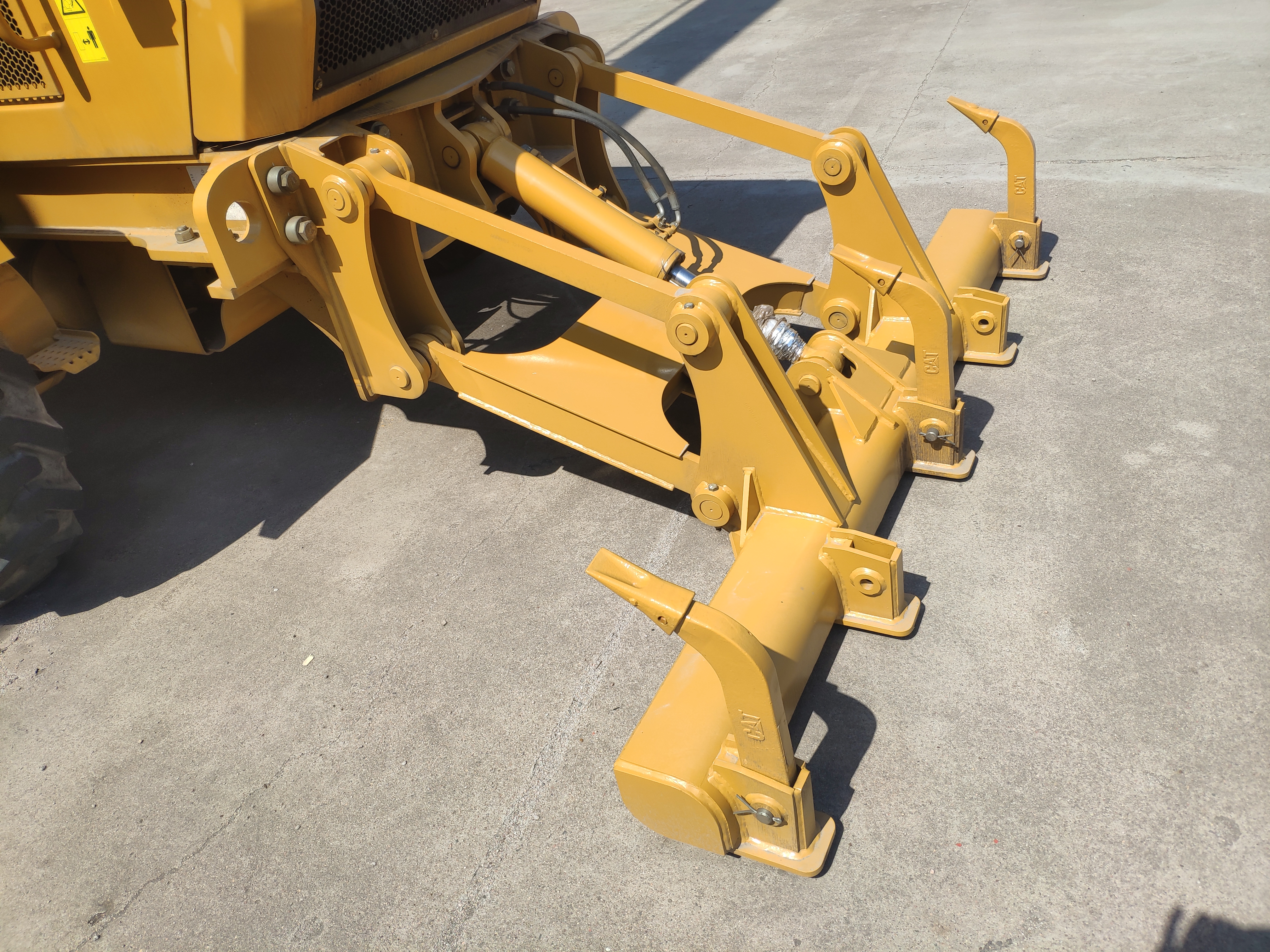

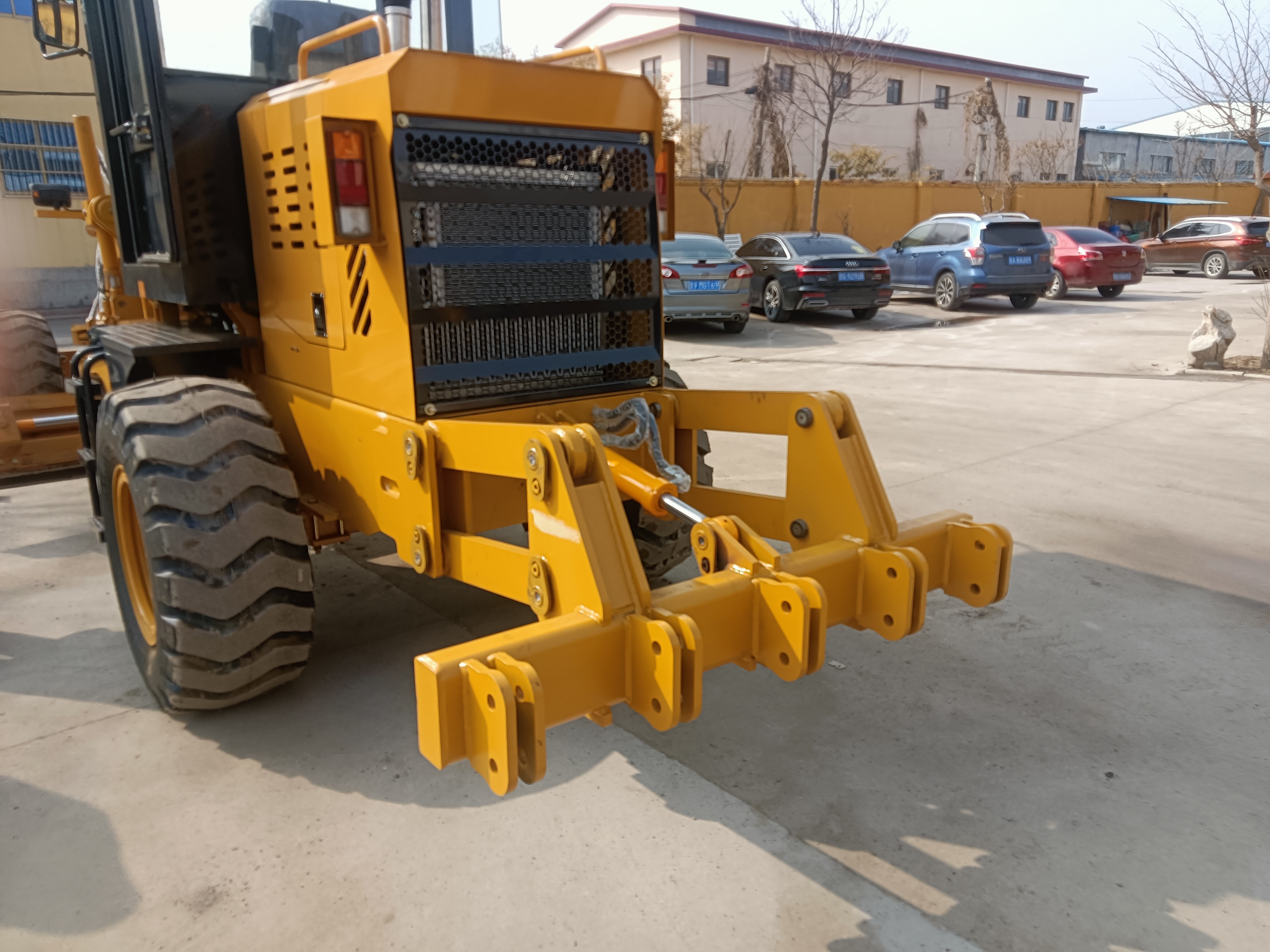

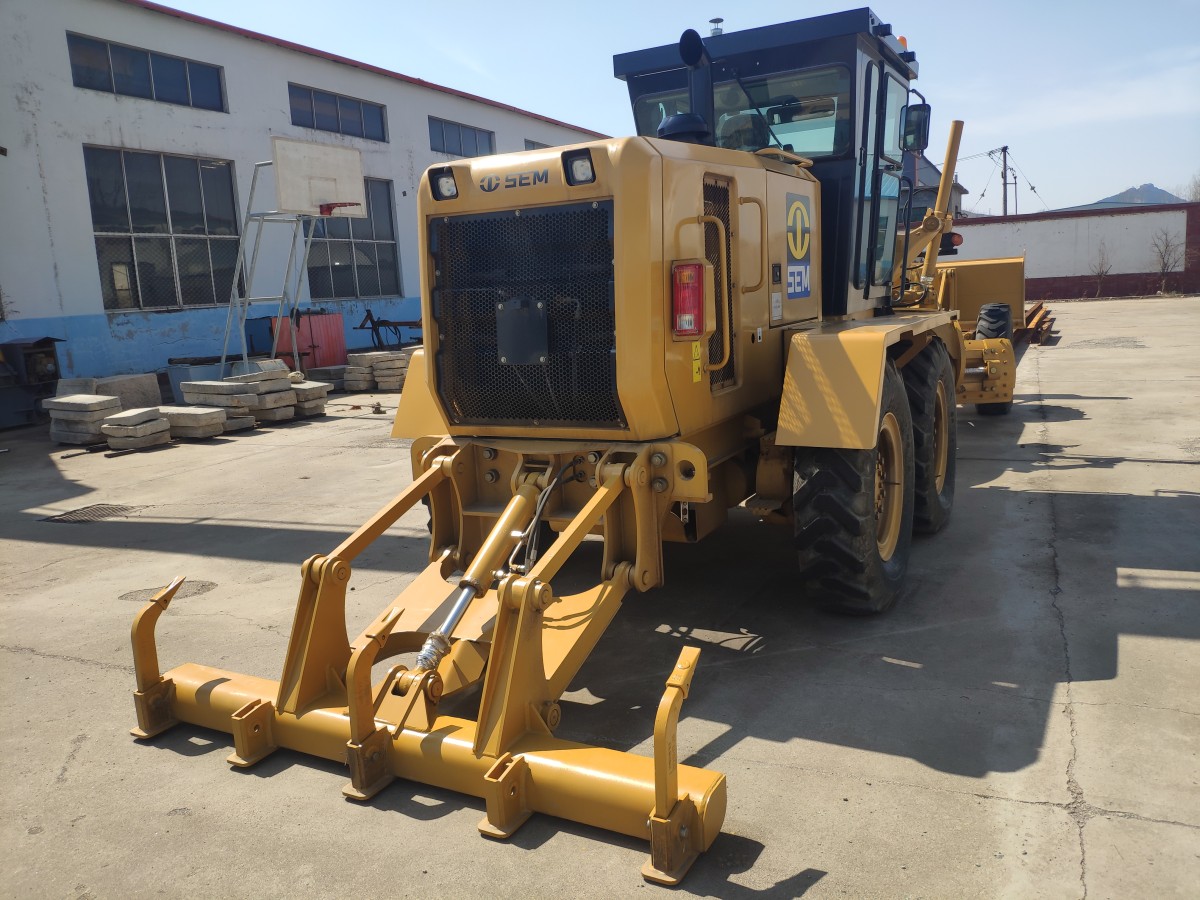

Product Show


Factory Show

Customer Photo

FAQ

Free Asked Questions:
1.Q: Are you a original manufacturer?
A; yes,we are a professional manfacturesr of construction manchinery in China and we can supply loaders, motor grader, road roller, tractor, backhoe loader, excavator etc.
2.Q:What kind terms of payment canbe accepted?
A: Normally we accept T/T or L/C.
3.Q:Which incoterms 2020 terms can we work?
A:FOB CIF CFR ESW etc.
4.Q:What is the delivery time?
A:Within 15 days after receving the deposit.
