Standard equipments:
• Hydrostatic transmission
• Toyota SAS (System of Active Stability*)
• Toyota OPS (Operator Presence Sensing)
• Toyota ORS seat (Operator Restraint System)
• Wide visible mast (MFH: 3000 mm)
• Load backrest (Height: 1220 mm)
• Long forks (Length: 1000 mm)
• Long forkbar [Length: 920 mm (8FG15F.18F); 1020 mm (8FG/D20F.25F);
1070 mm (8FG/D30F,8FG/DJ35F)]
• 3-way valve (A400)
• Dual brake system
• Pneumatic shaped cushion tyres
• Full hydraulic power steering
• 7” cyclone air cleaner with snorkel air intake
• Anti-restart ignition key switch
• LED Headlights
• LED Rear combination lights
• Multi function display, HST, including self diagnostic system
• Adjustable tilt steering column
• Polycarbonate roof
Truck specifications | 06-8FG20F | 56-8FD20F | 06-8FG25F | 56-8FD25F |
Identification | 1.1 | Manufacturer |
|
| TOYOTA | TOYOTA | TOYOTA | TOYOTA |
1.2 | Model |
|
| 06-8FG20F | 56-8FD20F | 06-8FG25F | 56-8FD25F |
1.3 | Drive |
|
| LPG | Diesel | LPG | Diesel |
1.4 | Operator type |
|
| Rider seated | Rider seated | Rider seated | Rider seated |
1.5 | Load capacity/rated load | Q | kg | 2000 | 2000 | 2500 | 2500 |
1.6 | Load centre | c | mm | 500 | 500 | 500 | 500 |
1.8 | Load distance, centre of drive axle to fork | x | mm | 470 | 470 | 470 | 470 |
1.9 | Wheelbase | y | mm | 1650 | 1650 | 1650 | 1650 |
Weight | 2.1 | Service weight |
| kg | 3250 | 3290 | 3560 | 3600 |
2.2 | Axle load, with load, front/rear |
| kg | 4580/670 | 4600/690 | 5280/780 | 5300/830 |
2.3 | Axle load, without load, front/rear |
| kg | 1410/1840 | 1430/1860 | 1300/2260 | 1320/2280 |
Tyres | 3.1 | Tyre - pneumatic (P), pneumatic shaped cushion (SE), solid rubber (R) |
|
| SE | SE | SE | SE |
3.2 | Tyre size, front |
|
| 7.00-12 | 7.00-12 | 7.00-12 | 7.00-12 |
3.3 | Tyre size, rear |
|
| 6.00-9 | 6.00-9 | 6.00-9 | 6.00-9 |
3.5 | Wheels, number front/rear (x=driven wheels) |
|
| 2x/2 | 2x/2 | 2x/2 | 2x/2 |
3.6 | Track width, front | b10 | mm | 960/1190 | 960/1190 | 960/1190 | 960/1190 |
3.7 | Track width, rear | b11 | mm | 965 | 965 | 965 | 965 |
Dimensions | 4.1 | Tilt of mast/fork carriage forward/backward |
| deg | 6/11 | 6/11 | 6/11 | 6/11 |
4.2 | Height, mast lowered | h1 | mm | 1995 | 1995 | 1995 | 1995 |
4.3 | Free lift | h2 | mm | 150 | 150 | 150 | 150 |
4.4 | Lift | h3 | mm | 2690 | 2960 | 2960 | 2960 |
| Lift height | h23 | mm | 3000 | 3000 | 3000 | 3000 |
4.5 | Height, mast extended | h4 | mm | 4250 | 4250 | 4250 | 4250 |
4.7 | Height of overhead guard (cab) | h6 | mm | 2160 | 2160 | 2160 | 2160 |
4.8 | Seat height | h7 | mm | 1100 | 1100 | 1100 | 1100 |
4.12 | Coupling height | h10 | mm | 315 | 315 | 315 | 315 |
4.19 | Overall length | l1 | mm | 3575 | 3575 | 3640 | 3640 |
4.20 | Length to face of forks | l2 | mm | 2575 | 2575 | 2640 | 2640 |
4.21 | Overall width | b1 | mm | 1150 | 1150 | 1150 | 1150 |
4.22 | Fork dimensions | s/e/l | mm | 40/100/1000 | 40/100/1000 | 40/100/1000 | 40/100/1000 |
4.23 | Fork carriage DIN 15173, class/type A, B |
|
| II A | II A | II A | II A |
4.24 | Fork-carriage width | b3 | mm | 1020 | 1020 | 1020 | 1020 |
4.31 | Ground clearance, with load, below mast | m1 | mm | 90 | 90 | 90 | 90 |
4.32 | Ground clearance, centre of wheelbase | m2 | mm | 135 | 135 | 135 | 135 |
4.33 | Aisle width for pallets 1000 x 1200 crossways | Ast | mm | 3870 | 3870 | 3950 | 3950 |
4.34 | Aisle width for pallets 800 x 1200 lengthways | Ast | mm | 4070 | 4070 | 4150 | 4150 |
4.35 | Turning radius | Wa | mm | 2200 | 2200 | 2280 | 2280 |
4.36 | Internal turning radius | b13 | mm | 745 | 745 | 745 | 745 |
Performance data | 5.1 | Travel speed, with/without load |
| km/h | 19/19 | 19/19 | 19/19 | 19/19 |
5.2 | Lift speed, with/without load |
| m/s | 0,60/0,64 | 0,62/0,66 | 0,60/0,64 | 0,62/0,66 |
5.3 | Lowering speed, with/without load |
| m/s | < 0,50 | < 0,50 | < 0,50 | < 0,50 |
5.6 | Max. drawbar pull, with/without load |
| N | 17500/7800 | 17500/7800 | 17500/9000 | 17500/9100 |
5.7 | Gradeability, with load/without load 1) |
| % | 32/20 | 32/20 | 27/22 | 27/22 |
5.10 | Service brake |
|
| Hydraulic | Hydraulic | Hydraulic | Hydraulic |

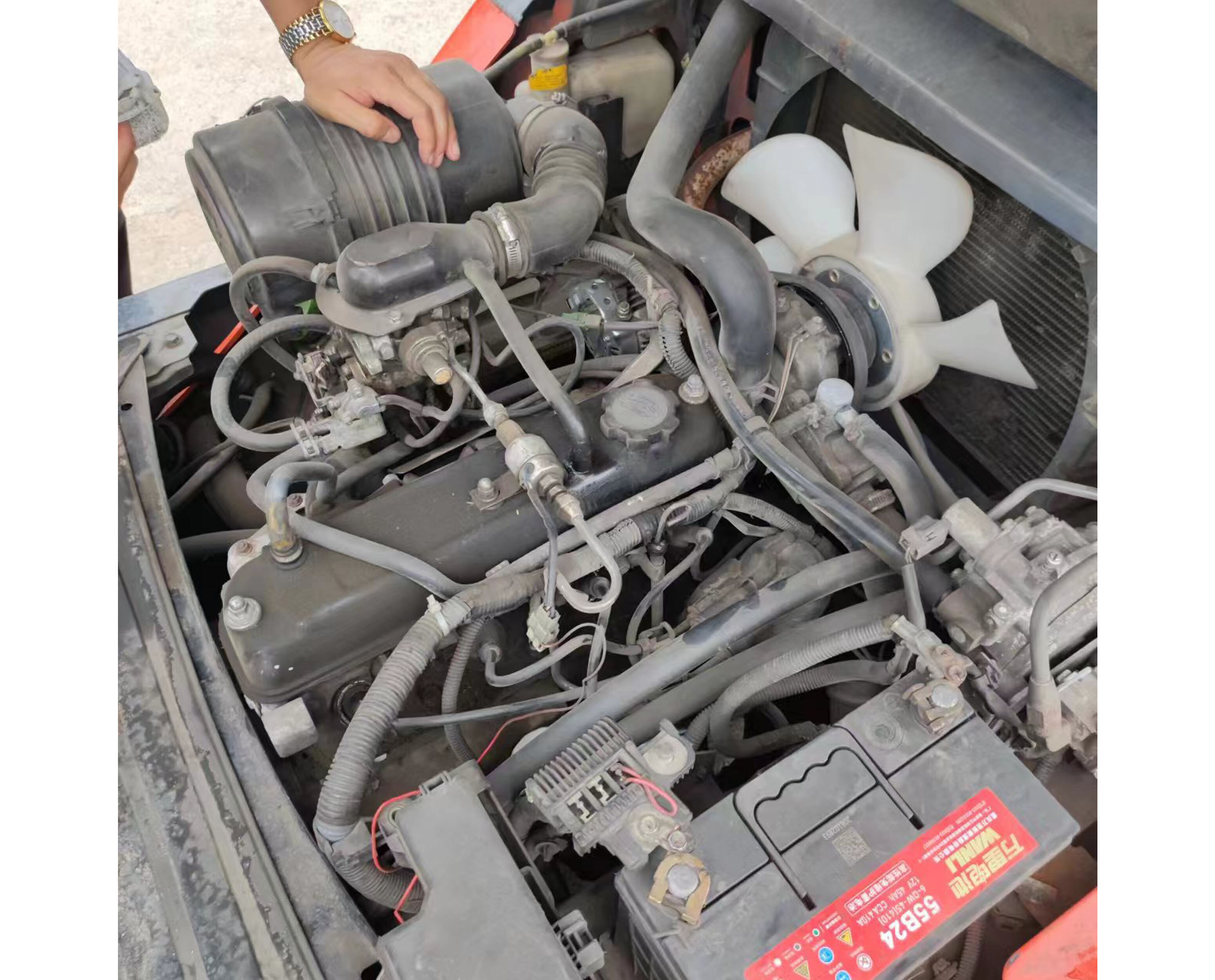

Combustion engine | 7.1 | Engine manufacturer/type |
|
| Toyota 4Y-ECS (V) | Toyota 1ZS (V) | Toyota 4Y-ECS (V) | Toyota 1ZS (V) |
7.2 | Engine power acc. to ISO 1585 |
| kW | 38 | 41 | 38 | 41 |
7.3 | Rated speed |
| 1/min | 2400 | 2200 | 2400 | 2200 |
7.4 | No. of cylinders/displacement |
| cm3 | 4/2237 | 3/1795 | 4/2237 | 3/1795 |
7.5a | Fuel consumption according to EN 16796 |
| kg/h | 3,0 | — | 3,4 | — |
7.5b | Fuel consumption according to EN 16796 |
| l/h | — | 2,7 | — | 3 |
Others | 8.2 | Operating pressure for attachments |
| bar | 147 | 147 | 147 | 147 |
8.3 | Oil volume for attachments |
| l/min | 65-71 | 65-77 | 65-71 | 65-77 |
8.4 | Sound level at the driver’s ear according to EN 12053 |
| dB(A) | 77 | 77 | 77 | 77 |
