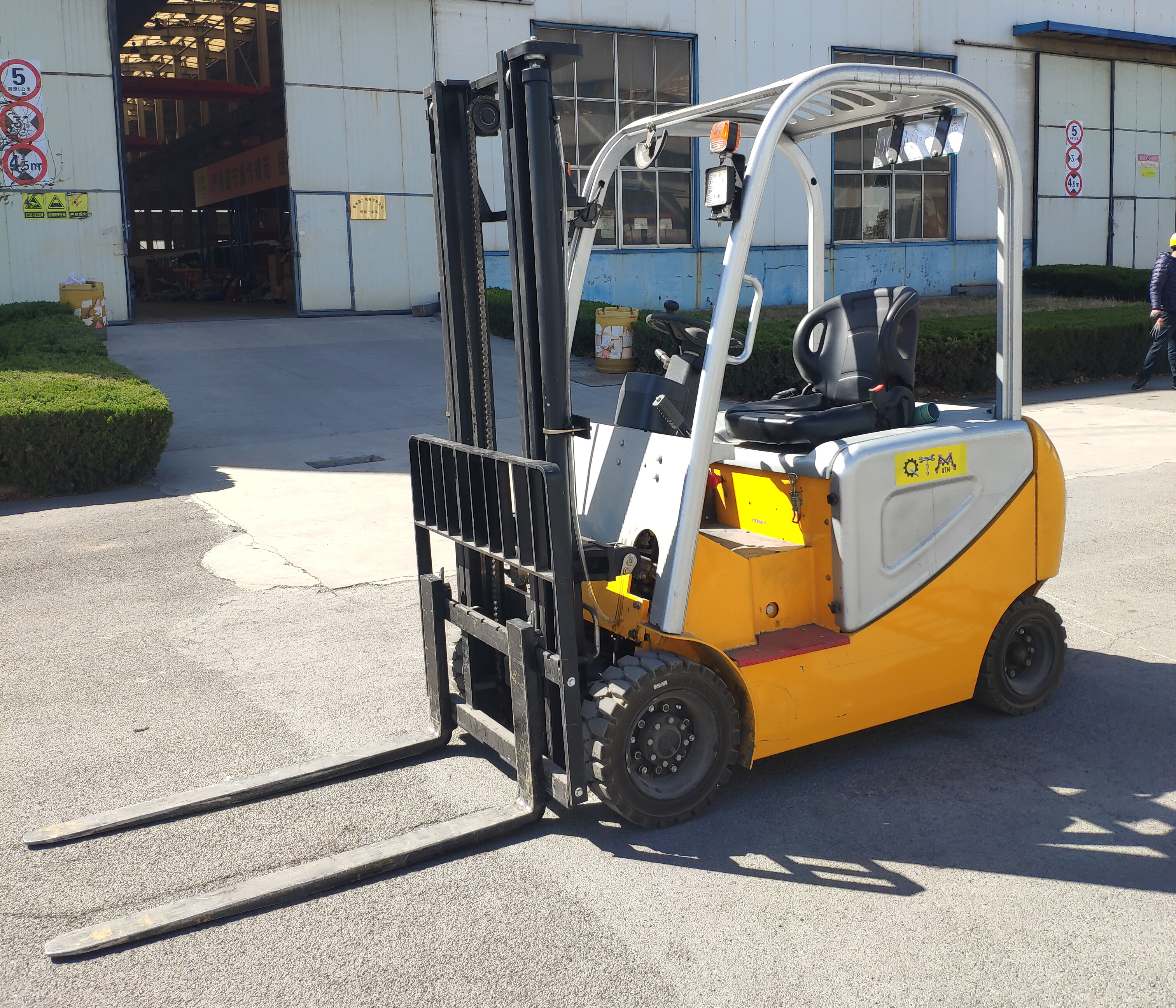

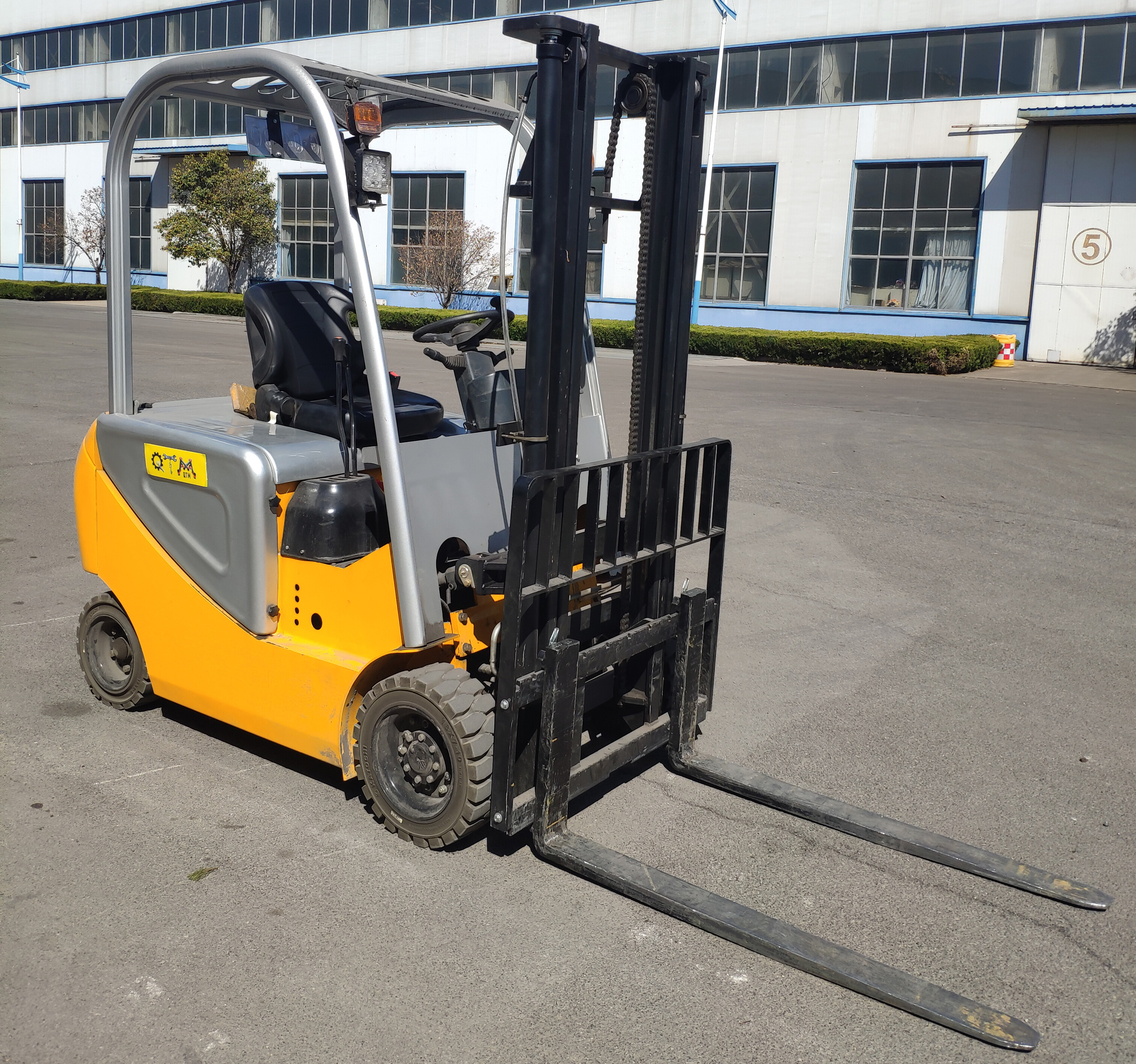

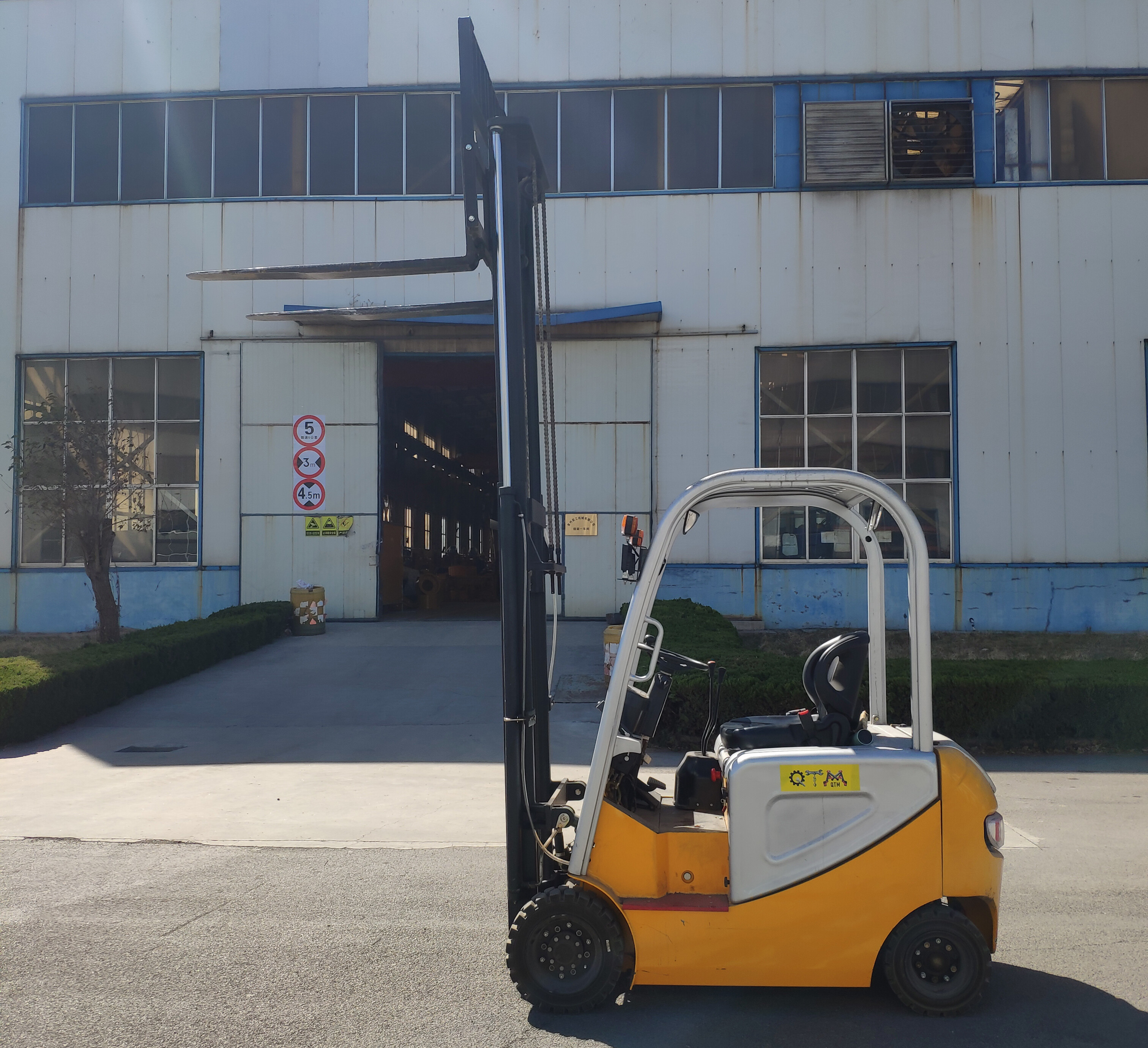

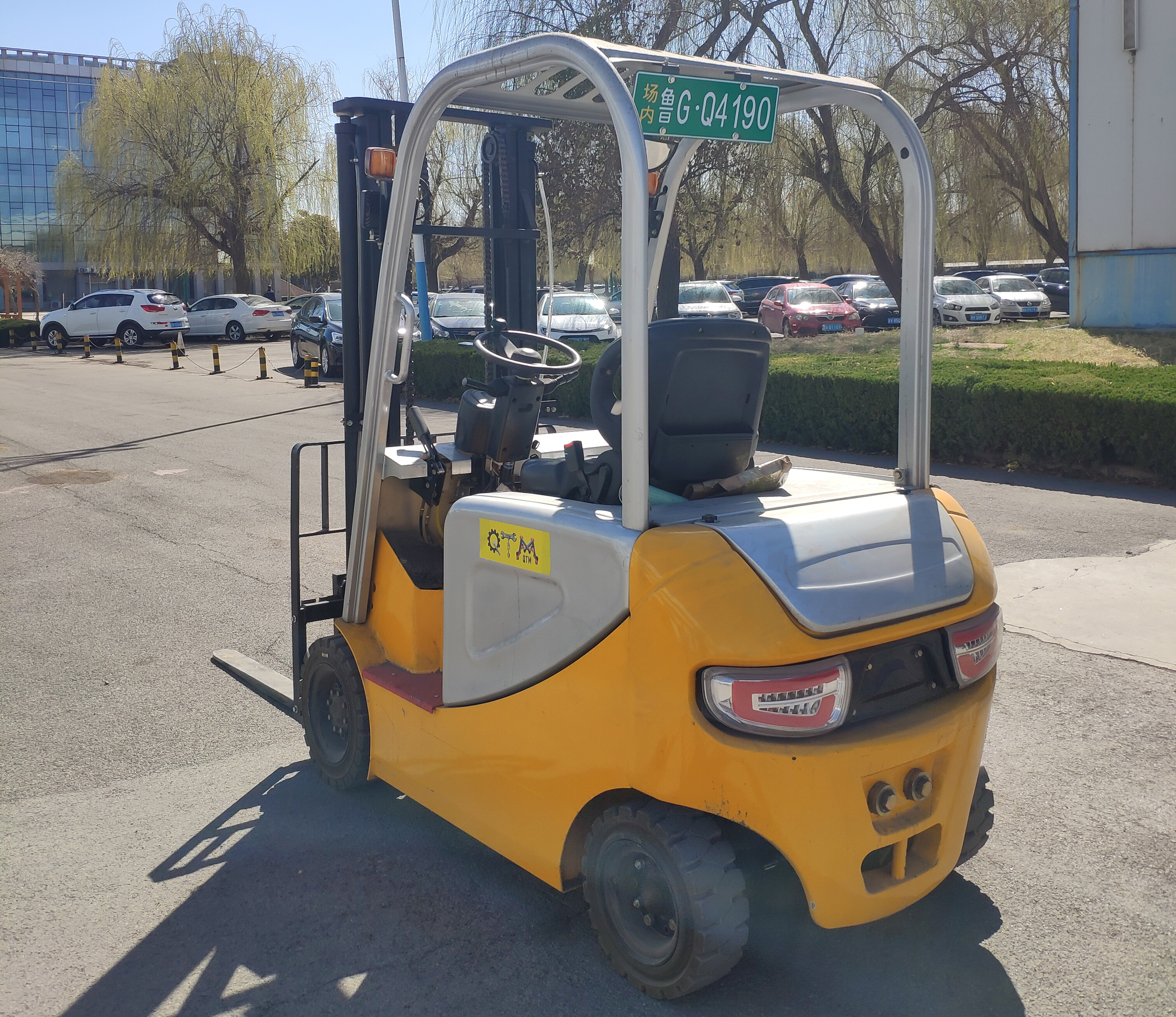

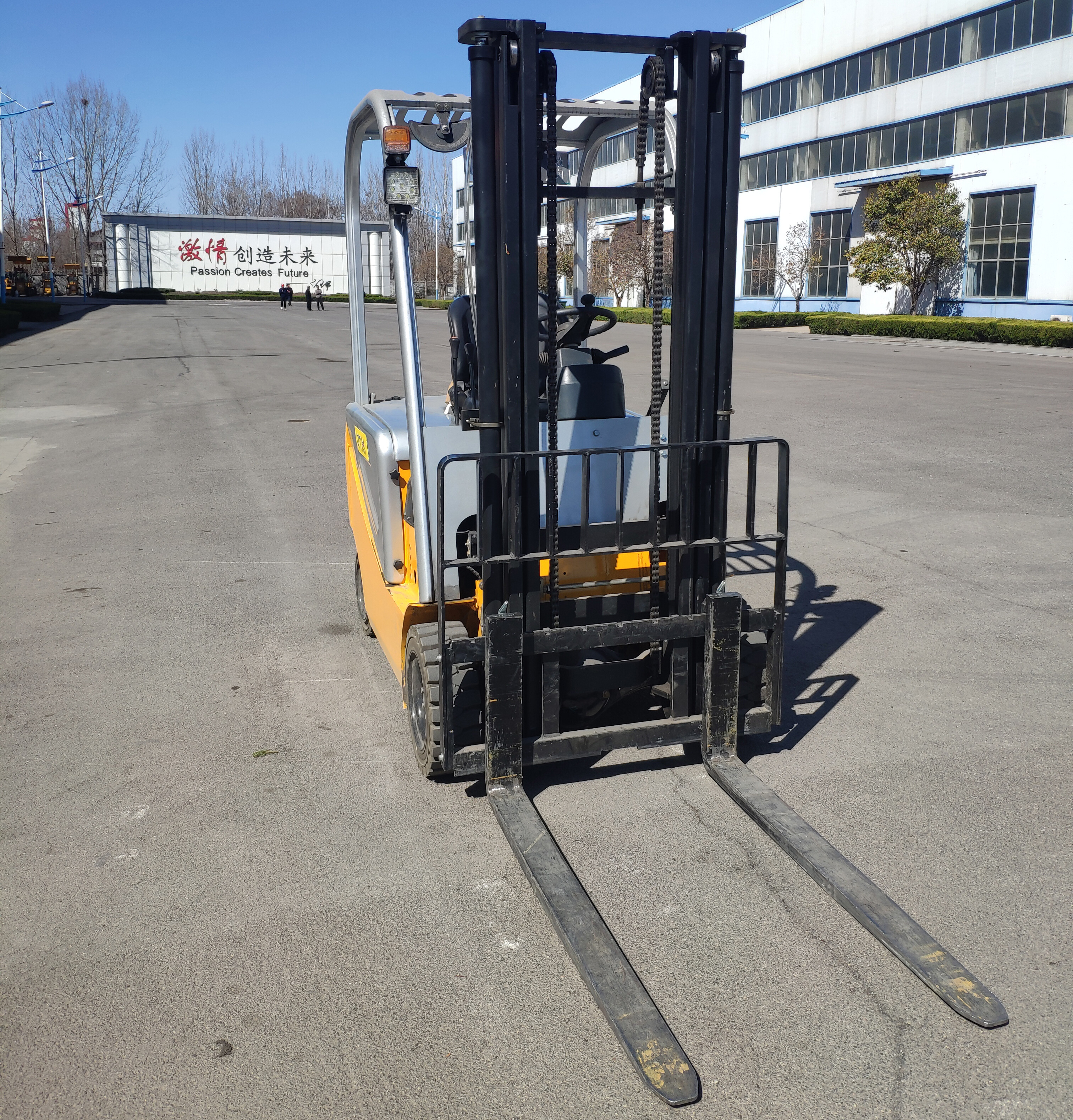

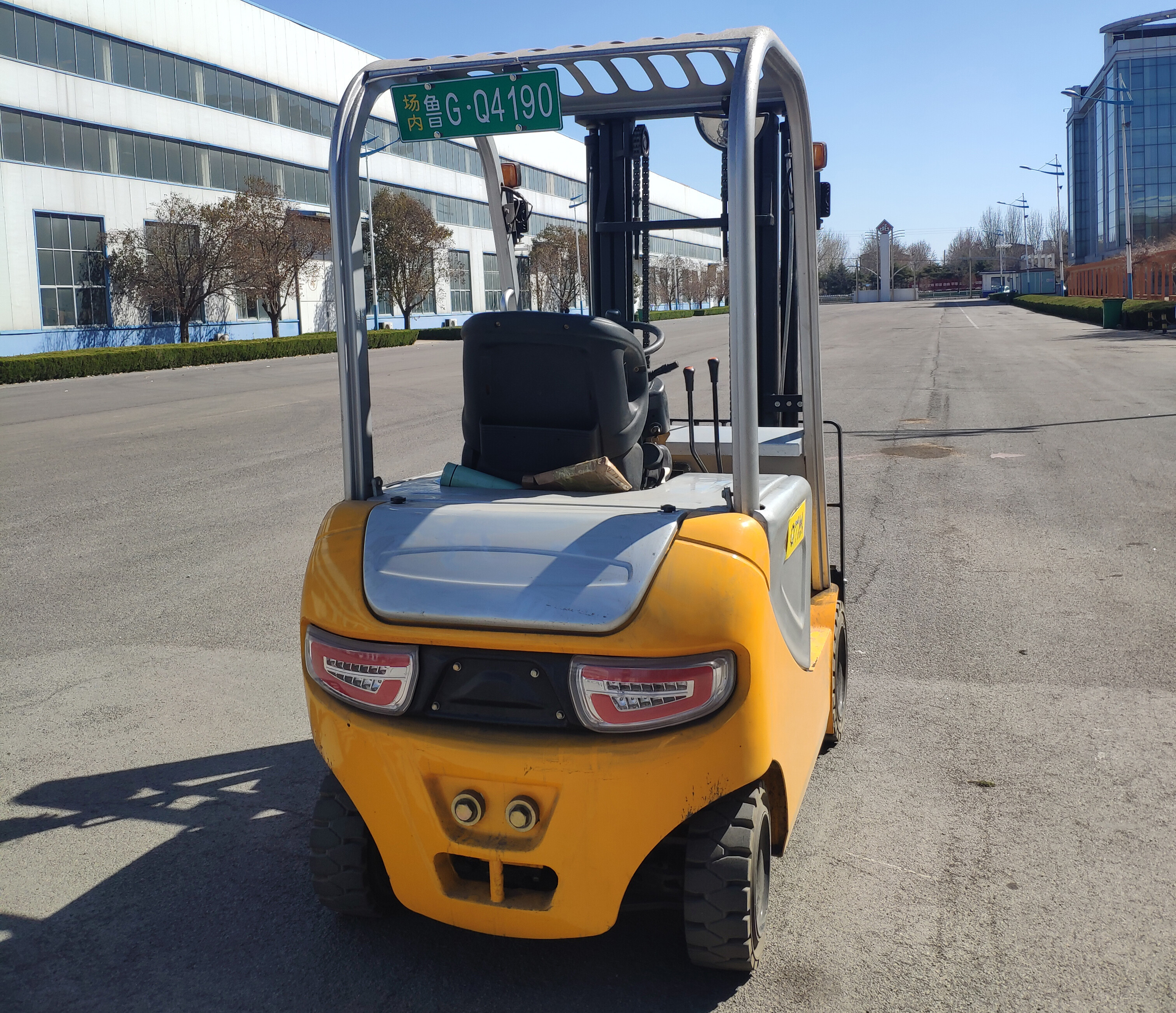

QTM10 Electric Forklift Truck
Electric forklift with new design, more attractive and zero-pollution.
The reinforced roof frame made by superb steel makes the machine with superior anti roll ability and better protection.
Adopts famous brand ZIBO TORCH battery, SANTROLL controllers, BANGBU YELI cylinders makes the quality guaranteed.
Hydraulic Steering system makes better operation performance.
Professional XCE electronic control proportional technology system and BMS function can makes it change freely between lead acid battery and lithium battery.
Phone : +86 18953651137
Email : info@qintaimach.com
Whatsapp : +86 15964591536

Product Description


Electric forklift with new design, more attractive and zero-pollution.

The reinforced roof frame made by superb steel makes the machine with superior anti roll ability and better protection.

Adopts famous brand battery, controllers, cylinders makes the quality guaranteed.

Hydraulic Steering system makes better operation performance.

Professional XCE electronic control proportional technology system and BMS function can makes it change freely between lead acid battery and lithium battery.


Model
CPD10D
Driving Mode
seated
Rated Capacitykg1000
Load Center Distance mm500
Power Mode
lead-acid battery
Wheelbasemm1330
                                  Tyre

Tyre Type
Solid Tyre
Wheels Number(front/rear)
2/2
Front Trackmm910
Rear Trackmm865
Tyre(front)
15X4 1/2-8
Tyre(rear)
15X4 1/2-8
Size

Front Overhangmm308
Tilt of the mast,front/rear°5/10
Height,mast retractionmm2017
Free lift heightmm/
Overall maximum lift heightmm3000
Height,mast extendedmm3957
Overhead guard heightmm1847
Lateral Fork Adjustment(Outside of Forks)Max/Minmm970/200
Fork Size(LxWxT)mm30*100*1070
Truck body length(fork excluded)mm1980
Truck body widthmm1020
Turning radiusmm2050
Groubd clearance under mastmm77
Ground clearance at center of wheelbase(laden)mm100
Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)mm3550
Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)mm3700
Performance

Travel speed,laden/unladenkm/h10/11
Lifting speed,laden/unladenmm/s220/230
Lowering speed,laden/unladenmm/s550
Maximum negoniable gradient,laden/unladen%15/20
Weight

Service mass(with battery) kg1550
Axle load:unloaded,front/rearkg
Axle load:loaded,front/rearkg
Battery voltage /nominal capacityV/Ah60V/120Ah
Battery weightkg150
Electrical configuration

Drive motor power-60 minuteskW5(PMS)
Lift motor  power-15 minuteskW4.5(PMS)
Drive motor controlling mode
MOSFET/PMSM
Lifting motor controlling mode
MOSFET/PMSM
Service brake/parking brake
Hydraulic/Mechanial


Product Show

10电叉 3.jpg

Factory Show

Customer Photo

FAQ

Free Asked Questions:
1.Q: Are you a original manufacturer?
A; yes,we are a professional manfacturesr of construction manchinery in China and we can supply loaders, motor grader, road roller, tractor, backhoe loader, excavator etc.
2.Q:What kind terms of payment canbe accepted?
A: Normally we accept T/T or L/C.
3.Q:Which incoterms 2020 terms can we work?
A:FOB CIF CFR ESW etc.
4.Q:What is the delivery time?
A:Within 15 days after receving the deposit.
